Main Features
1.Use advanced 6th generation DSP and full digital control technologies to realize higher system stability.
2.Output power factor is 0.9, carrying capacity than conventional UPS with 10% above, as users reduce investment cost.
3.Advanced distributed active parallel technology can realize parallel operation of 6PCS UPS units without the need of centralized bypass cabinet.
4.6-inch extra large LCD that can display 12 language (Chinese ,English,Russian,Spanish,French and so on).
5.Extra wide input voltage and frequency range make it adapt to severe power grid environment.
6.Intelligent battery management maintains battery automatically to prolong the battery life.
7.Standard input/output filter improves the system EMC performance.
8.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions.
9.Layered independently-sealed ventilation channel and re-dundant fan, circuit boards with protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment.
products detail

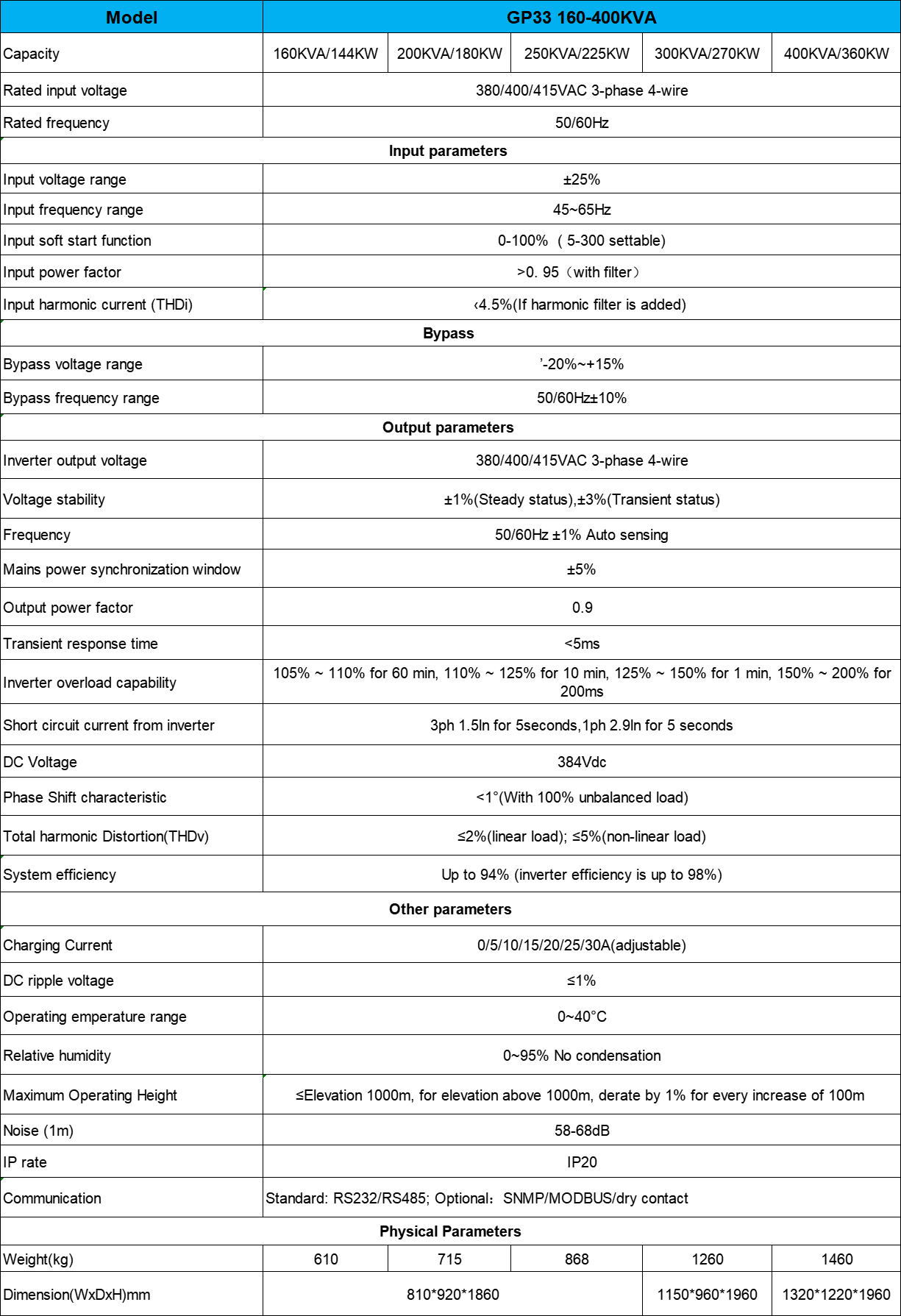

Technical Parameters
UPS Overview
DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.
Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.
Active input power factor correction (PFC): Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.
Widened range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS copd be obviously prolonged.
Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.
Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.
Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.
The load power factor is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.
Support the Generators: The wide range of input voltage and frequency can effectively separate the harmfp electric wave produces by the generators and provide safe and reliable power supply.
Large-screen LCD
