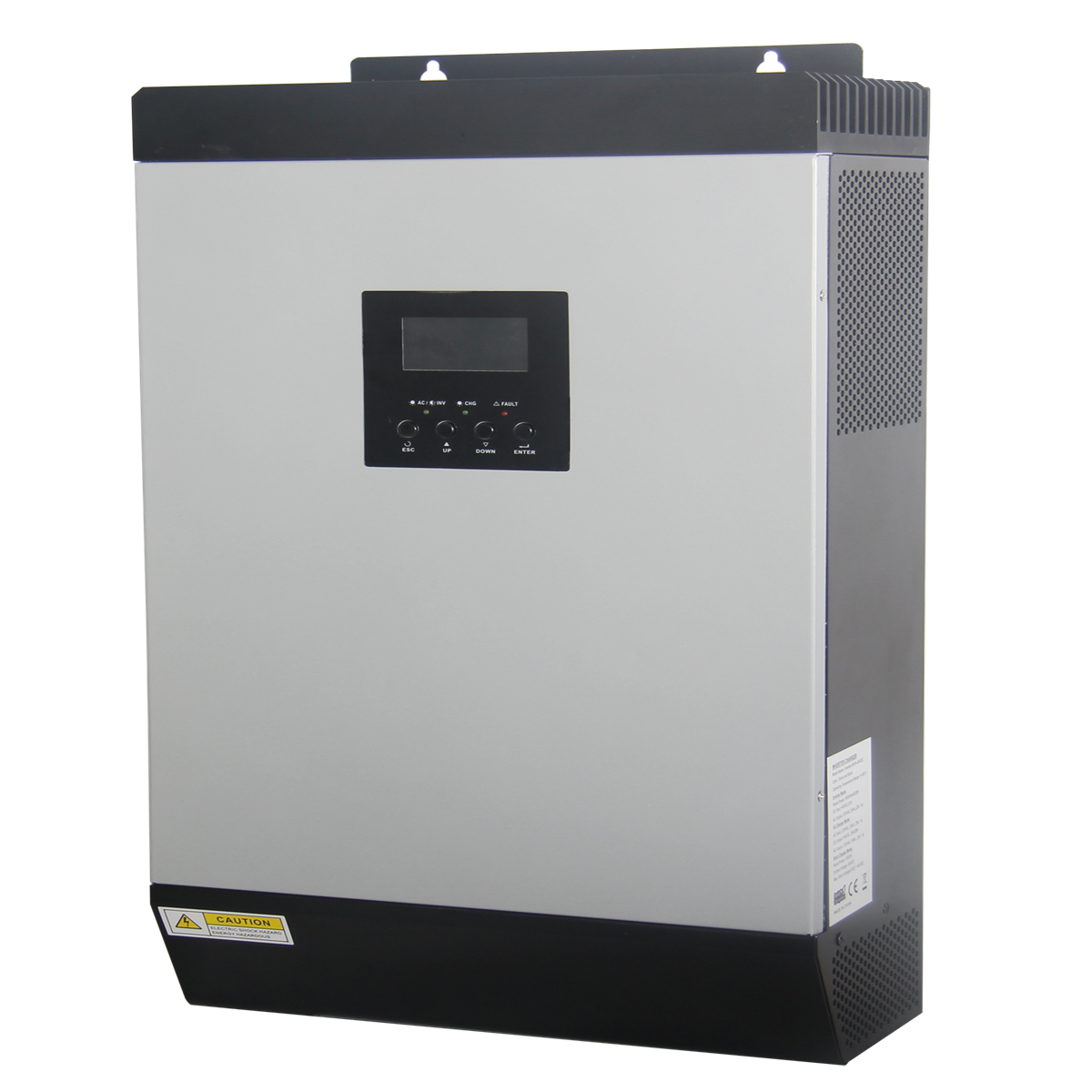

Solar Inverter SP500C 1~5KVA

Functions & Features:
1. Built-in PWM/MPPT solar controller
2.Pure sine wave inverter
3.Cold start function
4.Auto restart while AC is recovering
5.Overload and short circuit protection
6.Optional remote panel available
7.Selectable charging current based on applications
8.Configurable AC/Solar input priority via LCD setting
9.Compatible to mains voltage or generator power
10.Smart battery charger design for optimized battery performance
11.Parallel operation with up to 6 units only available for 4KVA/5KVA
12.Selectable input voltage range for home appliances and personal computers

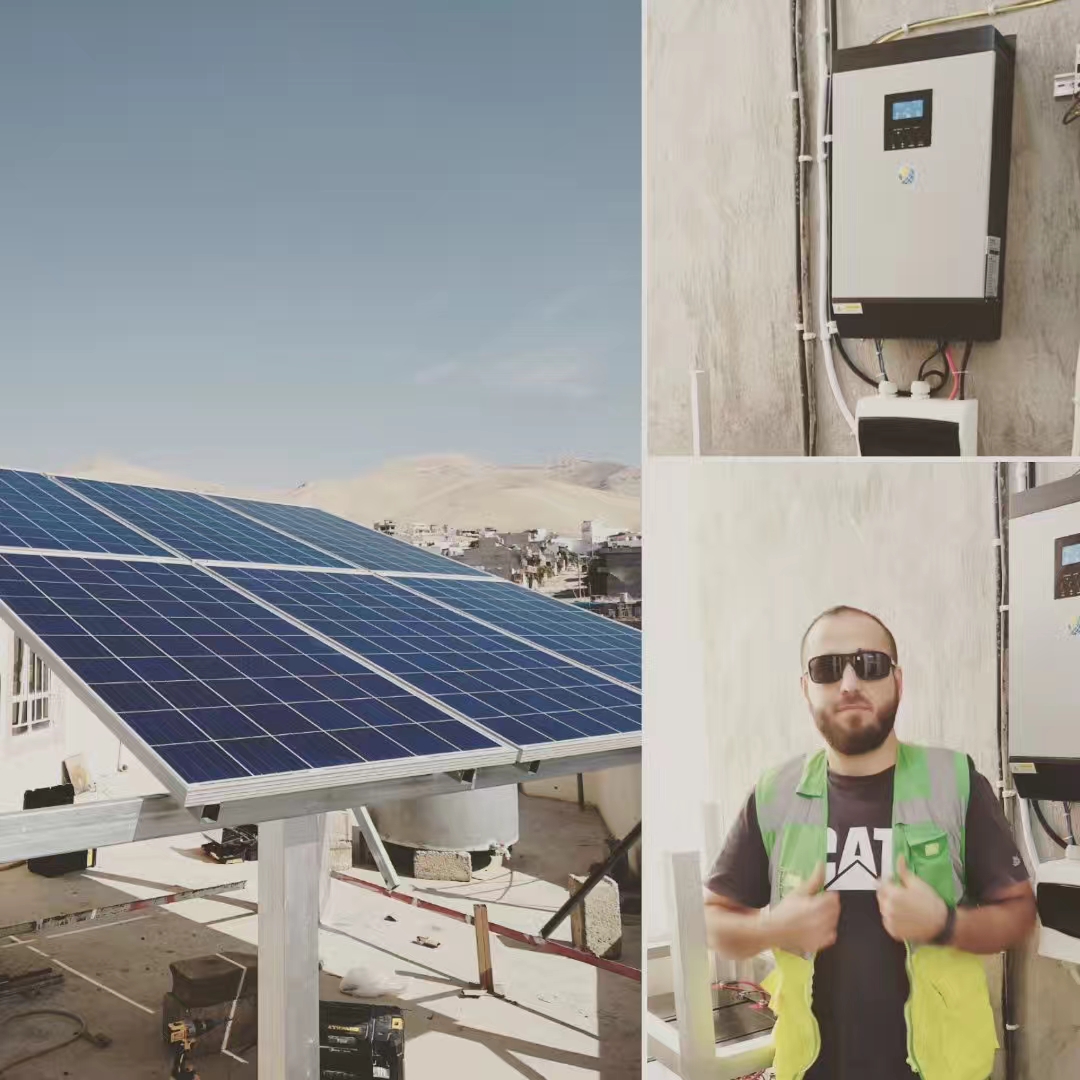

products detail

Technical Parameters

Physical Parameters

MODEL	SP500C 1K-2425	SP500C 2K-2425	SP500C 3K-2425	SP500C 4K-4860	SP500C 5K-4860
Rated Power	1000VA/800W	2000VA/1600W	3000VA/2400W	4000VA/3200W	5000VA/4000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5%
Surge Power	2000VA	4000VA	6000VA	8000VA	10000VA
Efficiency (Peak)	90%	93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24 VDC			48 VDC
Floating Charge Voltage	27 VDC			54 VDC
Overcharge Protection	31 VDC			60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power	600W		600W	3000W	3000W
MPPT Range @ Operating Voltage	30VDC ~ 66VDC		30VDC ~ 66VDC	60VDC ~115VDC
Maximum PV Array Open Circuit Voltage	75VDC		75VDC	145VDC
Maximum Solar Charge Current	25A		25A	60A	60A
Maximum AC Charge Current	20A	30A	30A	60 A
Maximum Charge Current	25A	30A	30A	120A	120A
	AC charger and solar charger can’t work at the same time.
Maximum Efficiency	98%
Standby Power Consumption	2 W
PHYSICAL
Dimension, D x W x H (mm)	105 x 272 x 355			120 x 295 x 468
Net Weight (kgs)	6.8		7.4	11
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

Solar Inverter Overview

1-5KVA Off Grid Solar Power Inverter System with mppt solar controller,output PF=0.8,AC/PV input priority,input voltage range for home loads and personal computers.Protection for low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.
