Other Accessories: SNMP Card & Split Phase Transformer
Two options that make our UPS and solar inverter systems easier to monitor and easier to match to local mains voltages.
- SNMP cardRemote monitoring & automatic server shutdown
- Transformer input220 Vac or 240 Vac, 50/60Hz
- Transformer outputSplit phase 110/220 Vac or 120/240 Vac
- Rated capacity5 kVA – 20 kVA
- Coil structureEI type, auto transformer or isolation
- StandardsUL / CSA / CE
- Warranty2 years

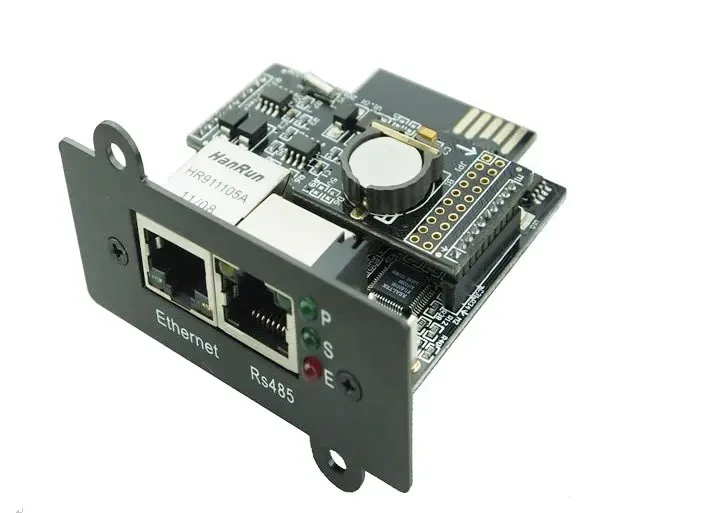

SNMP card for monitoring
Apply to remote monitoring UPS in network rack frame, computer center and data center, and its power supply and ambient environments: the administrator can save their trip patrolling the distant computer centers. When UPS power supply fails, the network servers and workstations will auto shutdown in turn safely to prevent data loss and hardware damage. Get to know the failure and warning information of the UPS and its ambient by simple communication methods (mobile phone, e-mail, phone line, network etc.), making the administrators able to master the problem with an effective solution before it affects the system usability.

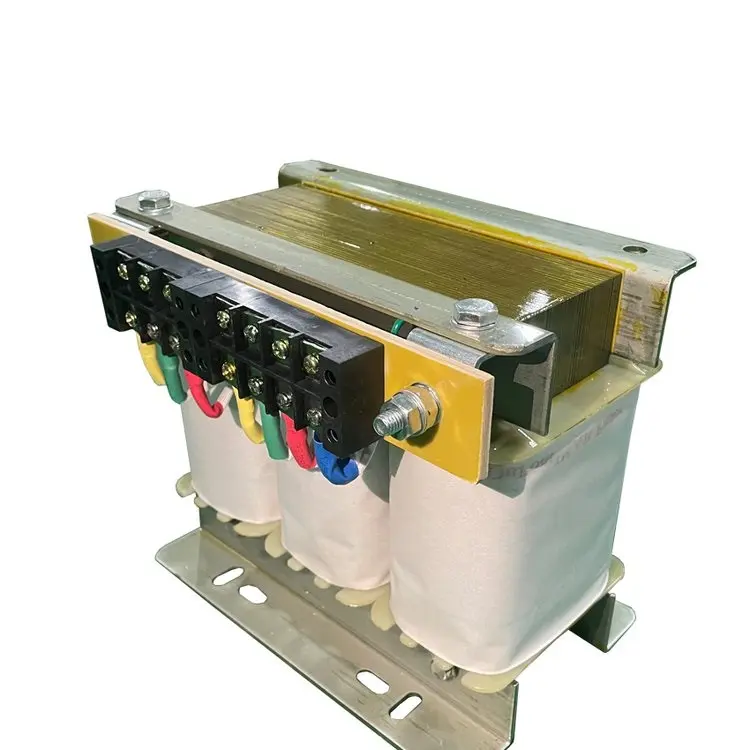

Split phase transformer for UPS & solar inverter
- 1Input 220Vac or 240Vac; output split phase 110/220Vac or 120/240Vac.
- 2Rated operating frequency: 50/60Hz.
- 3Phase: single phase.
- 4Rated capacity: 5kVA - 20kVA.
- 5Pressure drop: 1% - 5%.
- 6Coil structure: EI type transformer.
- 7Coil number: auto transformer or isolation.
- 8Warranty: 2 years.
- 9Insulation grade: F grade / H grade.
- 10Products comply with UL / CSA / CE standards.
- 11High quality silicon steel sheet iron core: small dimensions, high efficiency, low temperature rise.
- 12Input & output voltage can be designed and customized according to customer requirements.
- 13Storage conditions: temperature -40°C ~ 70°C.
