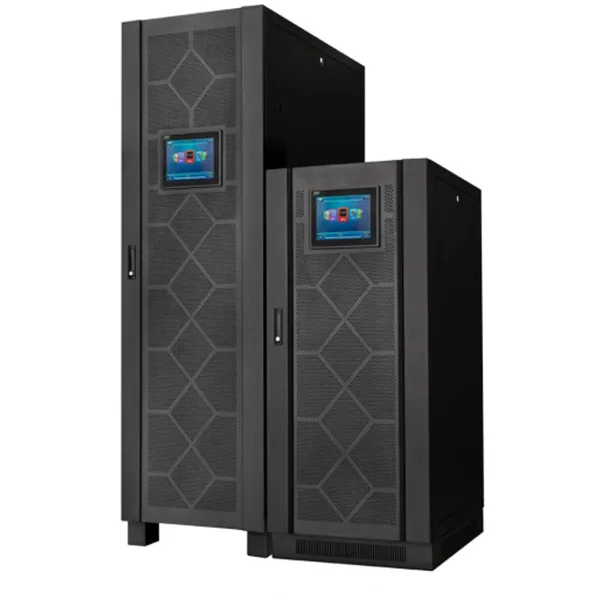

RM33 Modular UPS 30KVA-600KVA
Three-in / three-out modular UPS with N+X redundancy — expand capacity module by module, from 30 kVA to 600 kVA.
- Capacity30 – 300 kVA (30kVA module)
50 – 600 kVA (50kVA module) - Topology3 phase in / 3 phase out, online double conversion
- Output PF1.0
- Efficiency96%
- Module size440 × 620 × 86 mm (2U)
- ParallelUp to 4 cabinets (1200 / 2400 kVA)
- CommunicationRS232 / RS485 / dry contact / SNMP
Introduction
RM Series Modular UPS is a new generation three-in-three-out modular UPS launched by our company. The products adopt digital control, modular design and N+X parallel redundancy technology, which integrates the most advanced technical achievements in the field of power electronics and automatic control. The UPS is three phase in, three phase out, with each module 30kVA or 50kVA. It is available from 30kVA to 300kVA capacity (30kVA module), 50kVA to 600kVA capacity (50kVA module), and parallel 4 units to 1200kVA (30kVA module) and 2400kVA (50kVA module).
Features
- 1Centralized bypass, centralized control, modular design.
- 2Online double conversion and three level technology.
- 3DSP digital control technology.
- 4Wide input voltage range.
- 5Output power factor 1.
- 6High power density with size 440mm*620mm*2U.
- 7Cold start (battery start up).
- 8ECO mode operation.
- 9Intelligent battery management.
- 10N+X redundancy.
- 11Communications: RS485 / Relay card / USB / SNMP (optional).
- 12Optional emergency power off (EPO) function.
- 13Compatible with lithium battery applications.
Products detail
RM30 series — 30-300KVA
RM50 series — 50-600KVA
UPS overview
- DSP technologyThe advanced DSP digital control technology enables the UPS to deliver more stable performance.
- Environment friendlyThis UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to the environment and human beings in normal usage.
- Active input power factor correction (PFC)Digitalized control of the PFC enables the UPS to keep its input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.
- Widened range of input voltage and frequencyWe intentionally widen the range of input factors to make sure the UPS can apply to various environments, which will effectively sustain the battery charging even in an unstable power environment so that the service life of the UPS could be obviously prolonged.
- Zero power switch delayWhen the utility power fails, the UPS will automatically switch from AC mode to battery mode with no delay, which ensures a stable power supply for the operating system.
- Adaptive load managementThis technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitor power usage and automatically shed and reconnect loads in order to prevent generator overload.
- Sufficient expansion slotsThe pre-allocated smart slots enable flexibility in the choice of USB cards, AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.
- Load power factor 1.0It adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.
- Support the generatorsThe wide range of input voltage and frequency can effectively separate the harmful electric wave produced by the generators and provide a safe and reliable power supply.
- Modular and hot swappableBoth the power modules and the control modules are hot swappable, so capacity can be expanded or serviced without shutting the load down.
