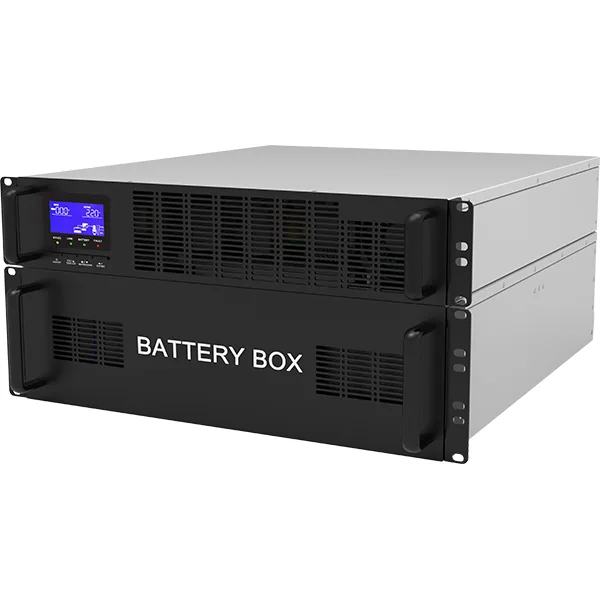

Online UPS Rackmount SR Series 6-20KVA

Rackmount online double conversion UPS, 6 – 20 kVA, single or three phase input, pure sine wave output.

  • Capacity6 – 20 kVA / 6 – 20 kW
  • FormatRackmount, 2U / 3U / 4U
  • Input voltage range1-phase 208/220/230/240 VAC · 3-phase 380/400/415 VAC
  • Output PF1.0
  • WaveformPure sine wave
  • Battery192 / 240 VDC (external battery)
  • CommunicationRS232 standard · SNMP / MODBUS / USB / Relay optional
View solutions

Main features

  • 1Large blue LCD display interface, user-friendly. Pure high frequency online UPS with voltage adjustment circuit, providing reliable power protection in a bad operation environment.
  • 2Comprehensive electric isolate and bypass protection.
  • 3Input power factor correction: reduces the harm of harmonic to the power grid, convenient to match small generators.
  • 4Automatic alarm, self test function.
  • 5Wide input voltage range.
  • 6Input neutral and live wire detect and data protect function.
  • 7When main power fails, the UPS goes to DC start, convenient and reliable; when mains power recovers, the UPS restarts automatically.
Products detail

Technical parameters

Rackmount online UPS details
