Online UPS Rackmount SR Series 1-3KVA

2U rackmount online double conversion UPS, 1 – 3 kVA, pure sine wave output.

  • Capacity1 – 3 kVA / 1000 – 3000 W
  • FormatRackmount, 2U (438 × 88 mm)
  • Input voltage range110V: 55 – 145 VAC / 220V: 90 – 300 VAC
  • Output PF0.9 (1.0 optional)
  • WaveformPure sine wave
  • Battery24 / 36 / 48 / 72 / 96 VDC
  • CommunicationRS232 standard · SNMP / MODBUS / USB / Relay optional
View solutions

Main features

  • 1Large blue LCD display interface, user-friendly. Pure high frequency online UPS with voltage adjustment circuit, providing reliable power protection in a bad operation environment.
  • 2Comprehensive electric isolate and bypass protection.
  • 3Input power factor correction: reduces the harm of harmonic to the power grid, convenient to match small generators.
  • 4Automatic alarm, self test function.
  • 5Wide input voltage range.
  • 6Input neutral and live wire detect and data protect function.
  • 7When main power fails, the UPS goes to DC start, convenient and reliable; when mains power recovers, the UPS restarts automatically.
Products detail

Technical parameters

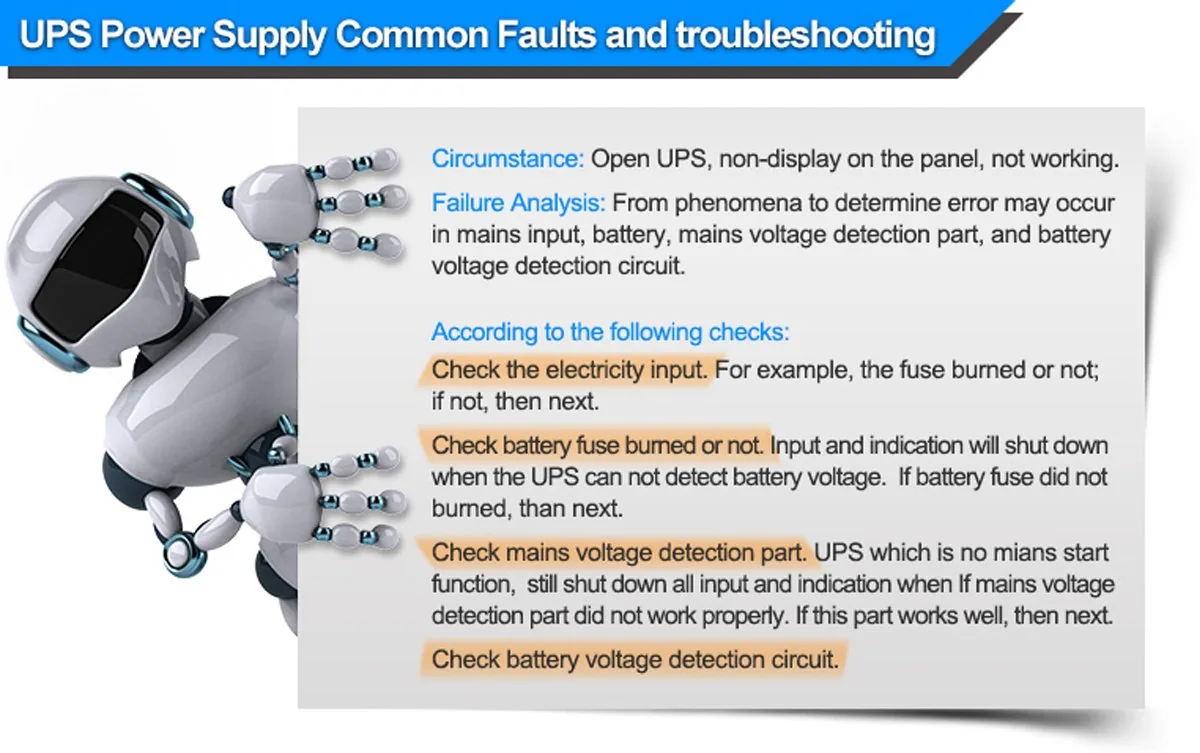

Rackmount online UPS details

Our service

Technical support system

  • Provide the necessary professional training in factory.
  • Comprehensive technical support provided pre-sales and after-sales.
  • Presentation & promotion of the new innovative products & technology.

Products service information

  • Provide the pre-sales, in-sales and after-sales service.
  • Provide all technical training.
  • 1 year warranty for offline UPS, online UPS and battery.

Spare parts warranty system

  • Provide certain spare parts in every order shipment.
  • Provide free maintenance or replacement spare parts within the given warranty.
  • Provide free maintenance technology and spare parts chargeable under out of warranty.

Value-added service

  • Provide the long-term maintenance service.
  • Provide the extended warranty as expected.
  • Provide the regular routine maintenance service.

Related products

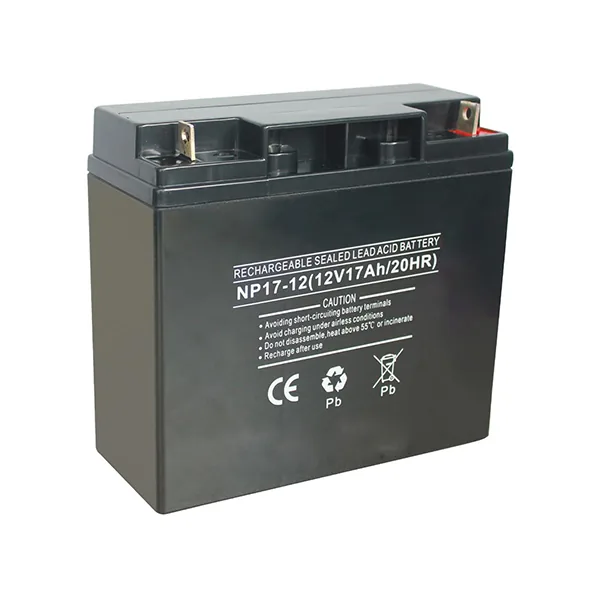

UPS batteries 17AH

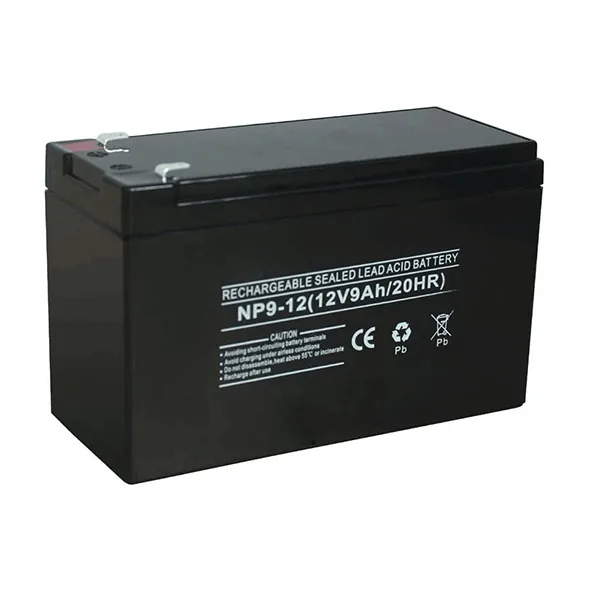

UPS batteries 9AH

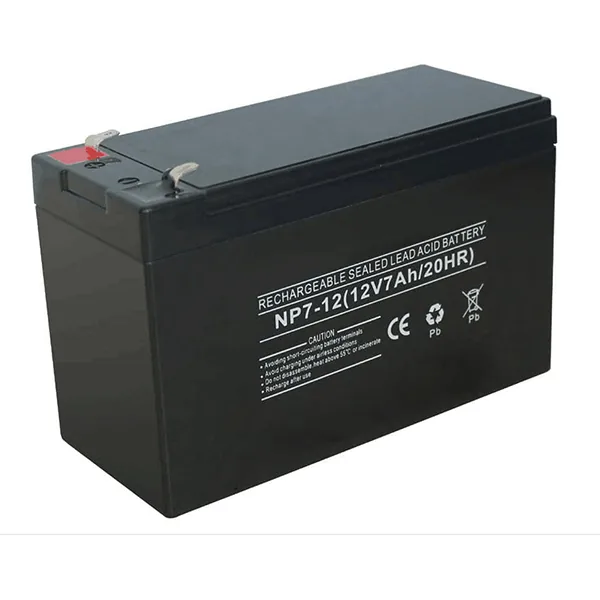

UPS batteries 7AHpw7 12 12v7ah
