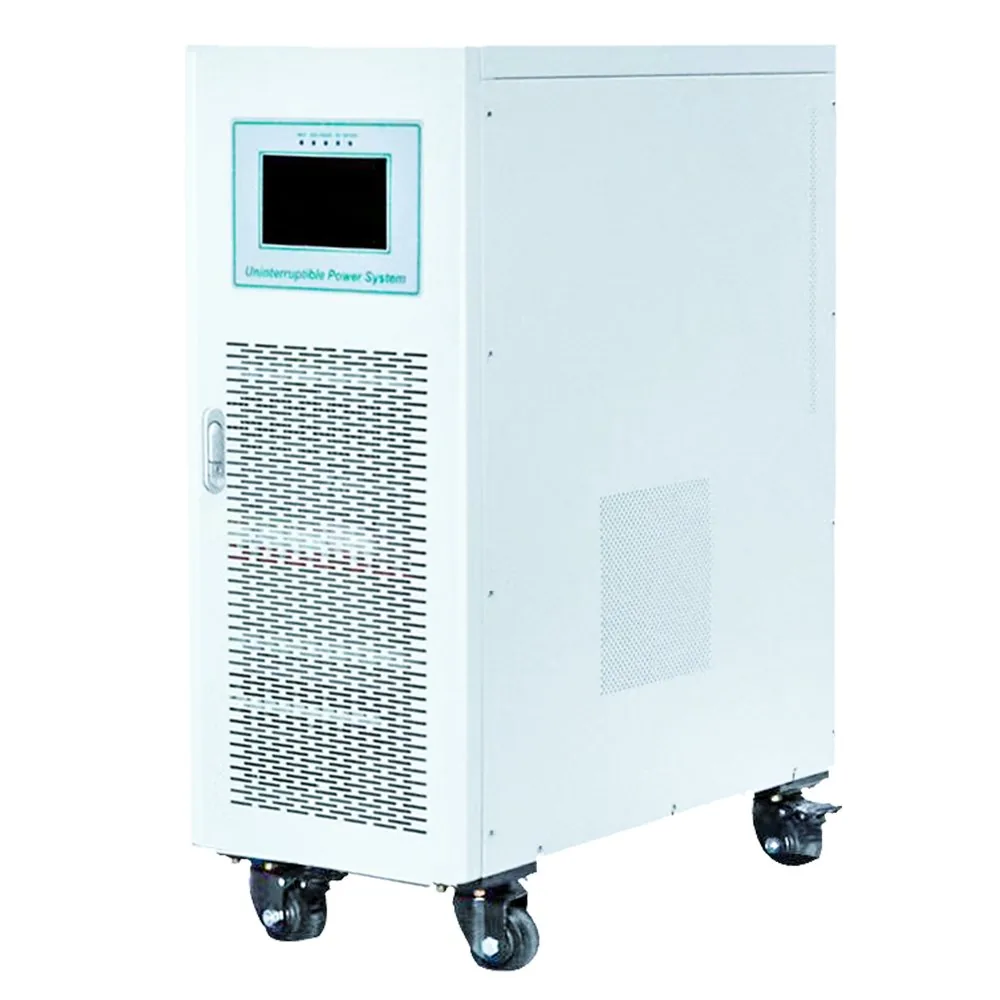

Online UPS 3ph input 3ph output SP33 10KVA-120KVA (3:3) (208V)

Three phase in, three phase out online double conversion UPS for 208 V grids, with distributed parallel capability.

Capacity10 – 120 kVA / 9 – 108 kW
Input voltage200 / 208 / 220 Vac · range 146 – 270 Vac
Output voltage200 / 208 / 220 Vac ±1%, PF 0.9
Crest factor3:1
Transfer timeMains to battery: 0 ms · bypass: 0 ms
ParallelUp to 6 units
Battery384 Vdc (VRLA, not included)
CommunicationRS232 / RS485 / dry contact standard · SNMP optional

View solutions

Main features

1Use advanced 6th generation DSP and full digital control technologies to realize higher system stability.
2Output power factor is 0.9, carrying capacity than conventional UPS with 10% above, as users reduce investment cost.
3Advanced distributed active parallel technology can realize parallel operation of 6 pcs UPS units without the need of centralized bypass cabinet.
46-inch extra large LCD that can display 12 languages (Chinese, English, Russian, Spanish, French and so on).
5Extra wide input voltage and frequency range make it adapt to severe power grid environment.
6Intelligent battery management maintains battery automatically to prolong the battery life.
7Standard input/output filter improves the system EMC performance.
8Extra strong capability to withstand output overload and short circuit, ensuring the system stability and safety under extreme conditions.
9Layered independently-sealed ventilation channel and redundant fan, circuit boards with protective paints and a dust filter embedded make it highly efficient to dissipate heat under severe environment.

Products detail

Technical parameters

Your browser has JavaScript disabled, so the parameter table cannot be displayed. Open the parameter sheet image.

UPS overview

DSP technologyThe advanced DSP digital control technology enables the UPS to deliver more stable performance.
Environment friendlyThis UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to the environment and human beings in normal usage.
Active input power factor correction (PFC)Digitalized control of the PFC enables the UPS to keep its input power factor above 0.95 to prevent possible electric grid pollution and meanwhile mostly save the cost.
Widened range of input voltage and frequencyWe intentionally widen the range of input factors to make sure the UPS can apply to various environments, which will effectively sustain the battery charging even in an unstable power environment so that the service life of the UPS could be obviously prolonged.
Zero power switch delayWhen the utility power fails, the UPS will automatically switch from AC mode to battery mode with no delay, which ensures a stable power supply for the operating system.
Adaptive load managementThis technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitor power usage and automatically shed and reconnect loads in order to prevent generator overload.
Sufficient expansion slotsThe pre-allocated smart slots enable flexibility in the choice of USB cards, AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.
Load power factor 0.9It adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.
Support the generatorsThe wide range of input voltage and frequency can effectively separate the harmful electric wave produced by the generators and provide a safe and reliable power supply.
Large-screen LCD

Our service

Technical support system

Provide the necessary professional training in factory.
Comprehensive technical support provided pre-sales and after-sales.
Presentation & promotion of the new innovative products & technology.

Products service information

Provide the pre-sales, in-sales and after-sales service.
Provide all technical training.
1 year warranty for offline UPS, online UPS and battery.

Spare parts warranty system

Provide certain spare parts in every order shipment.
Provide free maintenance or replacement spare parts within the given warranty.
Provide free maintenance technology and spare parts chargeable under out of warranty.
