SHINPOWIN®

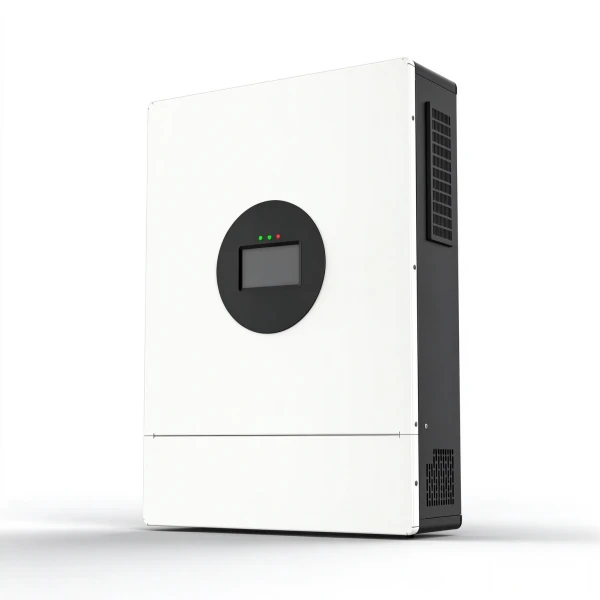

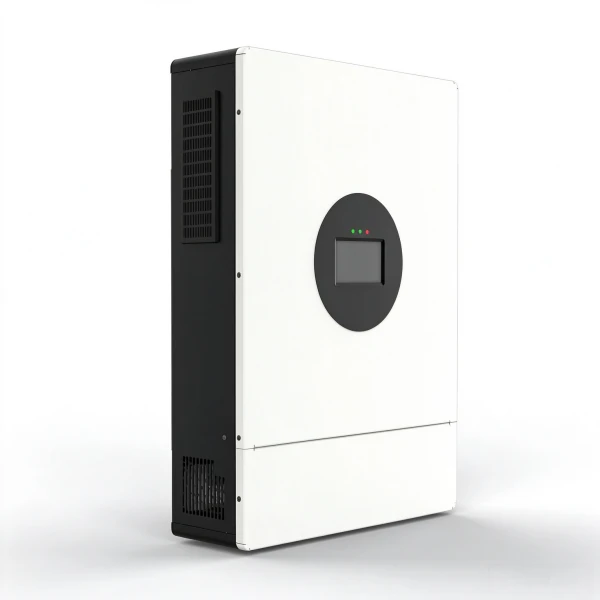

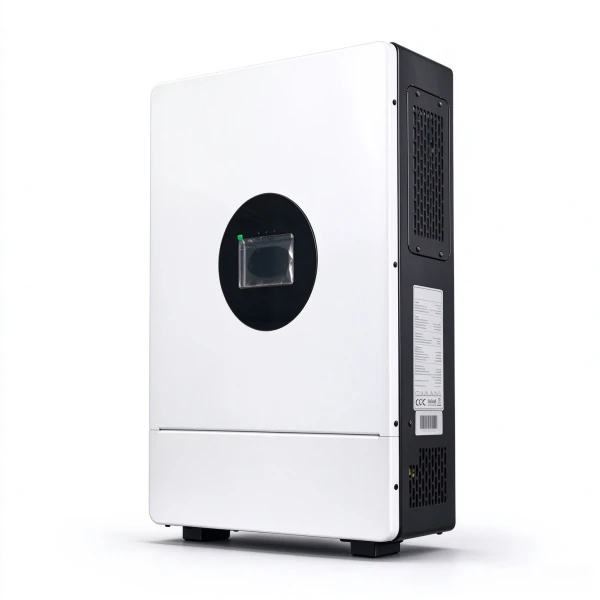

Hybrid Solar Inverter Split phase SPI Series 8Kw-12Kw
Split phase hybrid solar inverter with dual MPPT, pure sine wave output and up to 6 units in parallel.
- Rated power8000W · 10000W · 12000W
- Peak power16000W · 20000W · 24000W
- Output120 Vac single phase · 240 Vac split phase
- PV input2 × MPPT · 125 ~ 425 Vdc, max. 500 Vdc
- Max. PV array power7500W+7500W · 9000W+9000W
- Battery48 Vdc · charge current up to 220A
- Parallel1 ~ 6 units · protection degree IP20 / IP54
Key features
- 1100A MPPT built-in, run without battery solar inverter.
- 2Pure sine wave solar inverter.
- 3Output power factor 1.0.
- 4WIFI & GPRS available for iOS and Android.
- 5Inverter running without battery.
- 6Built-in 100A MPPT solar charger.
- 7High PV input voltage range (140~500VDC).
- 8Built-in anti-dusk kit for harsh environment.
- 9Smart battery charge design to optimize battery life.
Products detail
Solar inverter overview
8-12KW split phase hybrid solar power inverter system with dual MPPT solar controller, output PF 1.0, AC/PV input priority, input voltage range for home loads and personal computers. Protection for low battery voltage, over load, output short circuit and over-temperature; restrains surge interference, eliminates noise and protects against thunder striking.
Technical parameters
